Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8023573

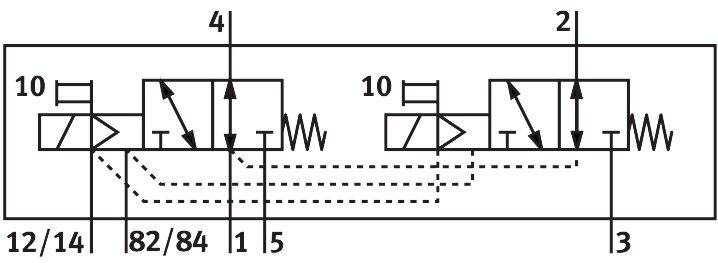

Air solenoid valve VMPA14-M1H-NS-S-G1/8-PI
The Festo 8023573 is an electrical industrial component featuring a 2x3/2 open monostable valve function, a 14 mm valve size, and a piston gate valve structural design with a mechanical spring reset method. This piloted component provides a normal nominal flow rate of 460 l/min, reversible flow direction, adjustable exhaust air function, and an operating pressure range of -0.09 MPa to 0.8 MPa (-0.9 bar to 8 bar) utilizing G1/8 pneumatic working ports and an external pilot air supply port. Operating at 24V DC with soft sealing principles, an IP65 degree of protection, and both detenting and non-detenting manual overrides, it is certified as c UL us - recognized (OL) with CE and UKCA markings per EMC and RoHS directives for mounting in any position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8023573
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8023573.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 460 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.8 MPa | -0.9 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | As per IEC 60529
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.4 MPa...0.8 MPa
- Pilot pressure
- 4 bar...8 bar
- Suitability for vacuum
- Yes
- Standard nominal ow rate with QS-8
- 460 l/min
- Switching time off
- 25 ms
- On switching time
- 10 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8023573. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
