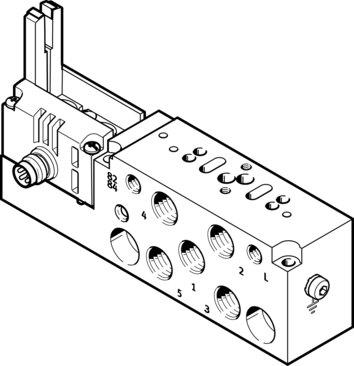

Reference imageConfirm configuration by manufacturer part number.
Festo
8023666
Sub-base VMPA14-IC-AP-1
The Festo 8023666 industrial component measures 24.4 mm in width by 107.3 mm in length with a width dimension of 14.9 mm and a product weight of 150 g. Operating within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this unit features M8 plug electrical connections and M7 or G1/8 pneumatic connections 1, 2, 3, and 4. It holds c UL us recognition, KC-EMV, CE, and UKCA markings, features a corrosion resistance class of CRC 0, and operates in ambient temperatures from -5 °C to 50 °C with through-hole sub-base mounting. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8023666
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8023666.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 24.4 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 150 g
- Electrical connection
- M8 | Plug
- Sub-base mounting type
- With through-hole
- Pneumatic connection 1
- M7 | G1/8
- Pneumatic connection 2
- M7 | G1/8
- Pneumatic connection 3
- M7 | G1/8
- Pneumatic connection 4
- M7 | G1/8
- Pneumatic connection 5
- M7 | G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8023666. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
