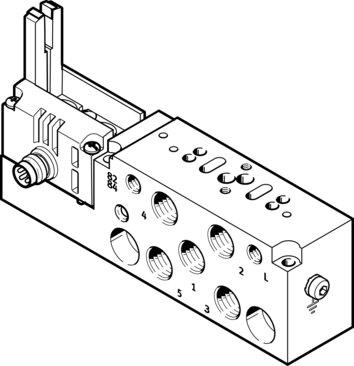

Reference imageConfirm configuration by manufacturer part number.
Festo
8023667
Sub-base VMPA14-IC-AP-S-1
The Festo industrial component, part number 8023667, is an M8 plug-connected unit featuring a width of 24.4 mm, a length of 107.3 mm, a width dimension of 14.9 mm, and a product weight of 150 g. It operates within a pressure and pilot pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), utilizing M5 pilot air and exhaust ports along with M7 or G1/8 pneumatic connections 1 and 2. Designed for through-hole sub-base mounting, this unit functions within an ambient temperature range of -5 °C to 50 °C and exhibits a corrosion resistance class of CRC 0 with VDMA24364-B1/B2-L LABS conformity. Certifications and markings include c UL us - recognized (OL), KC-EMV, CE marking per EU EMC and RoHS directives, and UKCA marking per UK instructions for EMC and RoHS. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8023667
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8023667.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 24.4 mm
- Length
- 107.3 mm
- Width dimension
- 14.9 mm
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 150 g
- Electrical connection
- M8 | Plug
- Sub-base mounting type
- With through-hole
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- M7 | G1/8
- Pneumatic connection 2
- M7 | G1/8
- Pneumatic connection 3
- M7 | G1/8
- Pneumatic connection 4
- M7 | G1/8
- Pneumatic connection 5
- M7 | G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8023667. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
