Festo
8024304

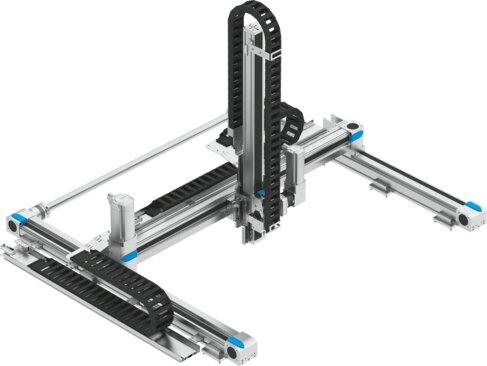

Three-dimensional gantry YXCR-2
The Festo part number 8024304 is a space portal system featuring electric and pneumatic actuator modules configured for a horizontal mounting position with a 100% duty cycle. This component requires a 0.1 mm/m flatness and parallelism on its mounting surfaces, constructed with an anodized aluminum and coated steel adapter plate, high-alloy stainless steel mounting bracket, and PA-reinforced energy chain containing RoHS-compliant materials. Operating within an ambient temperature range of 5 °C to 45 °C, relative air humidity of 0 to 90%, and storage temperatures from -20 °C to 60 °C, the unit adheres to VDMA24364 Zone III LABS conformity and requires maintenance every 2500 km. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8024304
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8024304.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Required atness of mounting surfaces
- 0.1 mm/m
- Required parallelism of the mounting surfaces
- 0.1 mm/m
- Mounting position
- Horizontal
- Structural design
- Space portal system | with electric and pneumatic actuator modules
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Ambient temperature
- 5 °C...45 °C
- Maintenance interval
- 2500 km
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum | Coated steel
- Material of mounting bracket
- high-alloy stainless steel
- Energy chain material
- PA-reinforced
