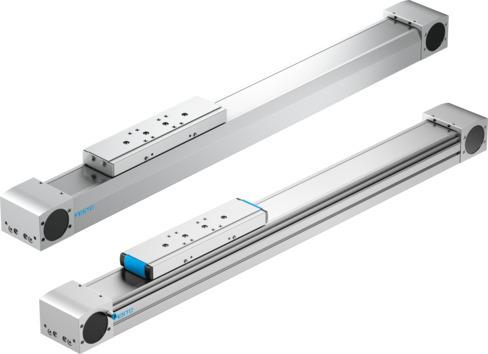

Reference imageConfirm configuration by manufacturer part number.
Festo
8024914
Belt driven linear actuator ELGA-TB-KF-70- -
The Festo 8024914 is an electromechanical linear axis with a toothed belt featuring a size 70 design, a 3 mm toothed belt pitch, and a drive pinion effective diameter of 28.65 mm. It incorporates a recirculating ball bearing guide and operates with a working stroke ranging from 50 mm to 5000 mm, supporting stepper or servo motors and featuring an incremental linear potentiometer measuring principle. This unit delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.08 mm, a 100% duty cycle, and maximum forces of 1500 N for Fy and 1850 N for Fz. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8024914
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8024914.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 28.65 mm
- Working stroke
- 50 mm...5000 mm
- Size
- 70
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Max. force Fy
- 1500 N
- Max. force Fz
- 1850 N
- Max. force Fy total axis
- 1500 N
- Max. force Fz total axis
- 1850 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 5520 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6808 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 132 Nm
- Max. torque Mz
- 132 Nm
- Max. moment Mx total axis
- 16 Nm
- Max. moment My total axis
- 132 Nm
- Max. moment Mz total axis
- 132 Nm
- Mx with theoretical service life of 100 km (from a guide perspective
- 59 Nm
