Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

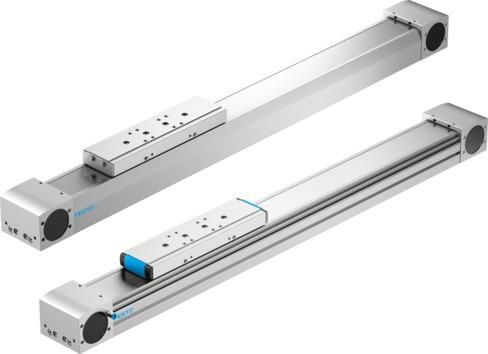

Reference imageConfirm configuration by manufacturer part number.
Festo
8024915
Belt driven linear actuator ELGA-TB-KF-80- -
The Festo 8024915 is an electromechanical linear axis with a toothed belt featuring an 80 size, a 5 mm toothed belt pitch, and a 39.79 mm drive pinion effective diameter. Configured with a recirculating ball bearing guide, this unit delivers a working stroke between 50 mm and 8500 mm, a maximum acceleration of 50 m/s², a maximum speed of 5 m/s, and a repetition accuracy of ±0.08 mm. Designed for compatibility with stepper and servo motors, it operates at a 100% duty cycle while supporting a maximum Fy force of 2500 N and a maximum Fz force of 3050 N under an IP40 degree of protection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8024915
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8024915.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 39.79 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 80
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Max. force Fy
- 2500 N
- Max. force Fz
- 3050 N
- Max. force Fy total axis
- 2500 N
- Max. force Fz total axis
- 3050 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 9200 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 11224 N
- Max. torque Mx
- 36 Nm
- Max. torque My
- 228 Nm
- Max. torque Mz
- 228 Nm
- Max. moment Mx total axis
- 36 Nm
- Max. moment My total axis
- 228 Nm
- Max. moment Mz total axis
- 228 Nm
- Mx with theoretical service life of 100 km (from a guide perspective
- 132 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8024915. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
