Festo
8024916

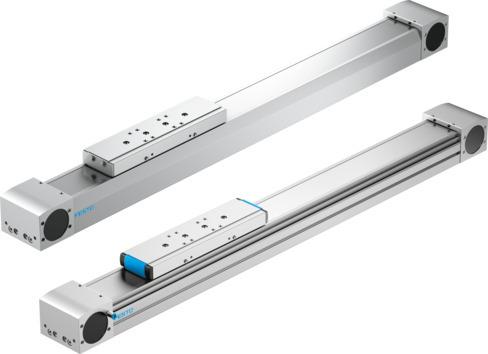

Belt driven linear actuator ELGA-TB-KF-120- -
The Festo Size 120 electromechanical linear axis features a toothed belt with a 5 mm pitch, a 52.52 mm drive pinion effective diameter, and an adjustable working stroke from 50 mm to 8500 mm. Driven by a stepper or servo motor with an incremental linear potentiometer measuring principle, this IP40-rated unit with a recirculating ball bearing guide achieves a maximum speed of 5 m/s, a max acceleration of 50 m/s², and a repetition accuracy of ±0.08 mm at a 100% duty cycle. Operating within ambient temperatures from -10 °C to 60 °C in any mounting position, the assembly accommodates maximum Fy and Fz forces of 5500 N and 6890 N respectively, and conforms to VDMA24364 Zone III LABS standards. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8024916
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8024916.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 52.52 mm
- Working stroke
- 50 mm...8500 mm
- Size
- 120
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Max. force Fy
- 5500 N
- Max. force Fz
- 6890 N
- Max. force Fy total axis
- 5500 N
- Max. force Fz total axis
- 6890 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 20240 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 25355 N
- Max. torque Mx
- 104 Nm
- Max. torque My
- 680 Nm
- Max. torque Mz
- 680 Nm
- Max. moment Mx total axis
- 104 Nm
- Max. moment My total axis
- 680 Nm
- Max. moment Mz total axis
- 680 Nm
- Mx with theoretical service life of 100 km (from a guide perspective
- 383 Nm
