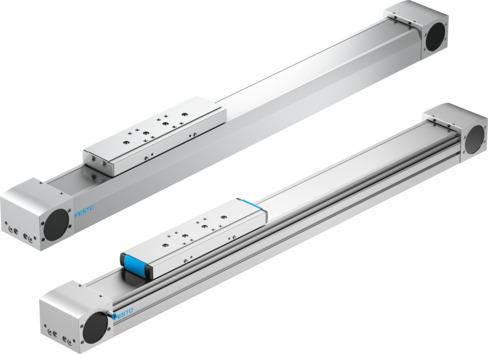

Reference imageConfirm configuration by manufacturer part number.
Festo
8024917
Belt driven linear actuator ELGA-TB-KF-150- -
The Festo 8024917 is an electromechanical linear axis of size 150 featuring a toothed belt structural design with a 73.85 mm drive pinion effective diameter and an 8 mm toothed belt pitch. Configured with a recirculating ball bearing guide and an incremental linear potentiometer measuring principle, this component operates within a working stroke of 50 mm to 7000 mm in any mounting position while supporting stepper or servo motors. It achieves a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.08 mm, a 100% duty cycle, and maximum Fy and Fz forces of 11000 N for both the total axis and individual loads. Built to IP40 protection standards and VDMA24364 Zone III LABS conformity, the unit functions across an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8024917
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8024917.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 73.85 mm
- Working stroke
- 50 mm...7000 mm
- Size
- 150
- Toothed belt pitch
- 8 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Measuring principle of linear potentiometer
- Incremental
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.08 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Max. force Fy
- 11000 N
- Max. force Fz
- 11000 N
- Max. force Fy total axis
- 11000 N
- Max. force Fz total axis
- 11000 N
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 40480 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 40480 N
- Max. torque Mx
- 167 Nm
- Max. torque My
- 1150 Nm
- Max. torque Mz
- 1150 Nm
- Max. moment Mx total axis
- 167 Nm
- Max. moment My total axis
- 1150 Nm
- Max. moment Mz total axis
- 1150 Nm
- Mx with theoretical service life of 100 km (from a guide perspective
- 615 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8024917. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
