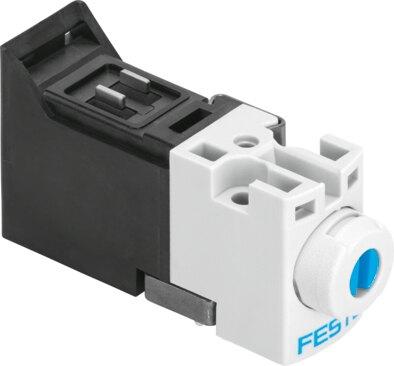

Reference imageConfirm configuration by manufacturer part number.
Festo
8025224
Air solenoid valve MHA1-M4R-3/2G-0,6-P3
The Festo part number 8025224 is a 3/2-way closed, monostable industrial component featuring a 10 mm width and a direct electrical actuation type with a 5V DC operating voltage. This directly controlled poppet valve with a spring return operates within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar, 21.75 psi to 116 psi) and provides a normal nominal flow rate of 10 l/min alongside an adjustable exhaust air function. It is constructed with a soft sealing principle, a 0.65 mm nominal width, sub-base pneumatic working ports, and offers both detenting and non-detenting manual overrides with IP40 and IP65 protection degrees plus c UL us recognition (OL) via UL MH19482. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8025224
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8025224.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 10 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 5V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40 | IP65
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Nominal width
- 0.65 mm
- Width dimension
- 10 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Max. switching frequency
- 10 Hz
- Switching time off
- 5 ms
- On switching time
- 5 ms
- Duty cycle
- 100%
- Electrical power consumption
- 1 W
- Coil characteristics
- 5 V DC: 1.0 W
