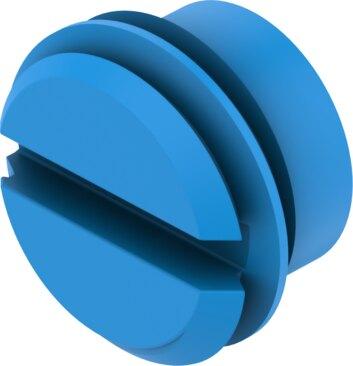

Reference imageConfirm configuration by manufacturer part number.
Festo
8025715
Flow control VFFG-T-M5-15
The Festo 8025715 is a flow control industrial component featuring a threaded mounting type and a nominal width of 1.55 mm. It delivers a standard nominal flow rate of 67.4 l/min in the flow control direction across an operating pressure range of -0.9 bar to 10 bar, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Weighing 0.5 g with a PA hollow bolt and RoHS-compliant materials, this unit operates within ambient temperatures from -5 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8025715
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8025715.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Type of mounting
- With thread
- Standard nominal ow rate in ow control direction
- 67.4 l/min
- Operating pressure
- -0.9 bar...10 bar
- Ambient temperature
- -5 °C...60 °C
- Nominal width
- 1.55 mm
- b-value
- 0.5
- C value
- 0.25 l/sbar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Product weight
- 0.5 g
- Note on materials
- RoHS compliant
- Hollow bolt material
- PA
