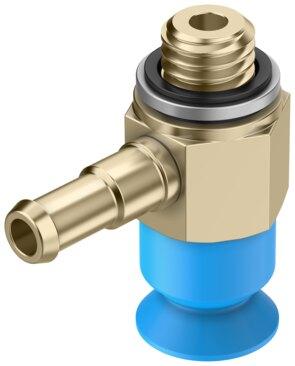

Reference imageConfirm configuration by manufacturer part number.
Festo
8025969
Vacuum suction cup VAS-8-M5-S-PUR-B
The Festo part number 8025969 is a round, flat industrial component featuring an 8 mm suction cup diameter, 7.1 mm effective suction cup diameter, and 2 mm nominal width with lateral connection position and M5 vacuum connection. Operating at a nominal operating pressure of -0.07 MPa (-0.7 bar, -10.15 psi) within a range of -0.095 MPa to 0 MPa, this 4 g blue unit provides a holding force of 2.8 N, 0.9 mm suction cup height compensation, and 0.095 cm³ suction cup volume. Built with a 60 +/-5 Shore hardness, CRC 2 moderate corrosion stress resistance, and VDMA24364-A1-L LABS conformity, it functions in ambient temperatures from -20 °C to 60 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-] and allows mounting in any position via vacuum connection. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8025969
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8025969.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 0.9 mm
- Nominal width
- 2 mm
- Suction cup diameter
- 8 mm
- Suction cup volume
- 0.095 cm³
- Effective suction cup diameter
- 7.1 mm
- Connection position
- Lateral
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 2.8 N
- Product weight
- 4 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M5
- Color
- Blue
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Brass
- Note on materials
- RoHS compliant
- Suction cup material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8025969. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
