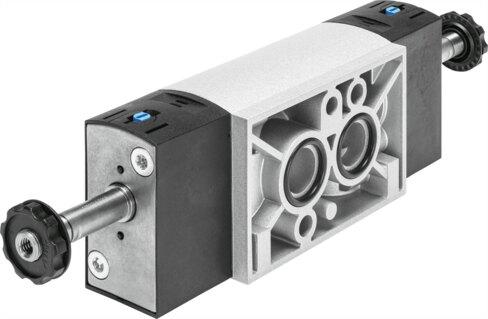

Name: Festo 8026033 Air solenoid valve VSNC
Brand: Festo

Air solenoid valve VSNC

The Festo part number 8026033 is an electrically actuated industrial component featuring a piston gate valve and plate seat structural design with a soft sealing principle. It offers a normal nominal flow rate ranging from 800 l/min to 1350 l/min at an operating pressure of 1.5 bar to 10 bar, configurable for 5/2-way bistable, switchable 5/2- or 3/2-way, and various 5/3-way functions. This unit includes adjustable exhaust air, internal pilot air supply, mechanical spring reset, and options for detenting, non-detenting, covered, or no manual override. Certified by c UL us and carrying CE markings under EU EMC, ATEX, low voltage, and RoHS directives, it provides IP65, IP66, and IP67 protection with a plug socket according to IEC 60529 while conforming to VDI/VDE 3845 (NAMUR) standards. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8026033
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8026033.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable | 5/2- or 3/2-way, switchable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
Actuation type: Electrical
Normal nominal ow rate (normalized to DIN 1343): 800 l/min...1350 l/min
Operating pressure: 1.5 bar...10 bar
Structural design: Piston gate valve | Plate seat
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU low voltage directive | As per EU RoHS directive
Degree of protection: IP65 | IP66 | IP67 | With plug socket | As per IEC 60529
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: VDI/VDE 3845 (NAMUR)
Manual override: Detenting | None | Non-detenting | Covered
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap | Negative overlap
b-value: 0.4 ...0.5
C value: 2.1 l/sbar...5.6 l/sbar

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8026033. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
