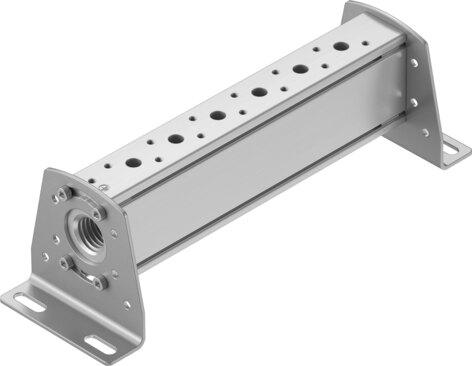

Reference imageConfirm configuration by manufacturer part number.
Festo
8026222
Common supply manifold VABM-B10-25-G12-5-P53
The Festo part number 8026222 is an industrial component featuring a width dimension of 27.5 mm, a product weight of 504 g, and a manifold rail material of wrought aluminum alloy with a corrosion resistance class of CRC 2 for moderate corrosion stress. It accommodates a maximum of 5 valve positions, utilizes G1/2 pneumatic connection 1, incorporates RoHS compliant materials, and includes VDMA24364-B1/B2-L LABS conformity. This unit supports any mounting position and utilizes a type of mounting with a mounting bracket. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 27.5 mm
- Mounting position
- Any
- Max. no. of valve positions
- 5
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 504 g
- Type of mounting
- With mounting bracket
- Pneumatic connection 1
- G1/2
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
