Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8026282

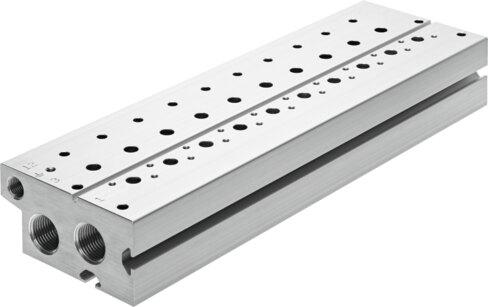

Manifold block VABM-B10-25E-G12-5-P3
The Festo 8026282 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 27.5 mm and a product weight of 1428 g. This assembly accommodates a maximum of 5 valve positions, includes G1/8 pilot air port 12, and utilizes G1/2 pneumatic connections 1 and 3. Constructed with through-hole mounting for any installation position, it meets RoHS material standards, VDMA24364-B1/B2-L LABS conformity, and corrosion resistance class CRC 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026282
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026282.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 27.5 mm
- Mounting position
- Any
- Max. no. of valve positions
- 5
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1428 g
- Type of mounting
- With through-hole
- Pilot air port 12
- G1/8
- Pneumatic connection 1
- G1/2
- Pneumatic connection 3
- G1/2
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026282. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
