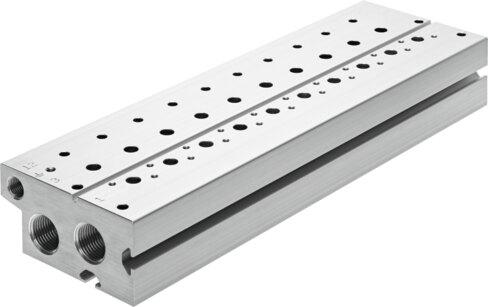

Reference imageConfirm configuration by manufacturer part number.
Festo
8026284
Manifold block VABM-B10-25E-G12-7-P3
The Festo part number 8026284 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 27.5 mm and a product weight of 1896 g. This component supports a maximum of 7 valve positions, features through-hole mounting, and can be installed in any mounting position while achieving a corrosion resistance class (CRC) of 2 alongside VDMA24364-B1/B2-L LABS conformity and RoHS material compliance. It includes G1/2 pneumatic connections 1 and 3, as well as a G1/8 pilot air port 12. Submit the exact part number, quantity, and application requirements to receive a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026284
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026284.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 27.5 mm
- Mounting position
- Any
- Max. no. of valve positions
- 7
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1896 g
- Type of mounting
- With through-hole
- Pilot air port 12
- G1/8
- Pneumatic connection 1
- G1/2
- Pneumatic connection 3
- G1/2
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026284. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
