Festo
8026298

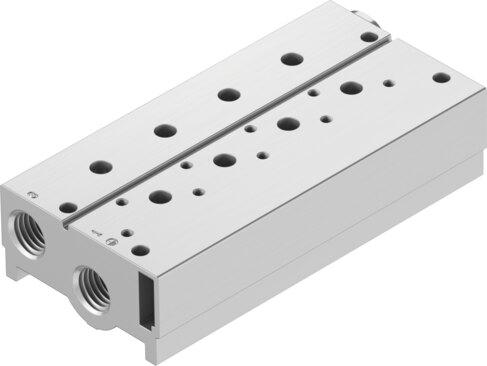

Manifold block VABM-B10-25S-G38-3-P3
The Festo 8026298 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 27.5 mm and a product weight of 488 g. This assembly accommodates a maximum of 3 valve positions, incorporates G3/8 pneumatic connections for both connection 1 and connection 3, and utilizes a through-hole mounting type operable in any mounting position. Constructed with RoHS-compliant materials, the unit meets a corrosion resistance class (CRC) of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026298
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026298.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 27.5 mm
- Mounting position
- Any
- Max. no. of valve positions
- 3
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 488 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026298. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
