Festo
8026315

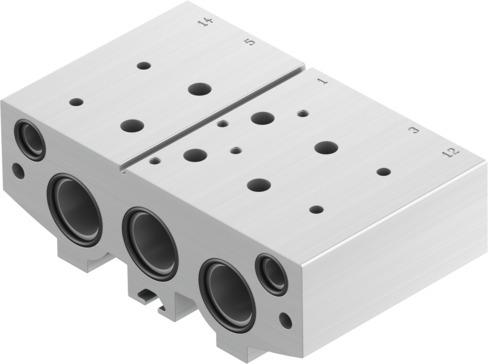

Manifold block VABM-B10-25EEE-G12-2
The Festo 8026315 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 27.5 mm and a product weight of 258 g. It accommodates a maximum of two valve positions and incorporates G1/2 pneumatic connections 1, 3, and 5 alongside G1/8 pilot air ports 12 and 14. Constructed with a CRC of 2 for moderate corrosion stress and LABS conformity to VDMA24364-B1/B2-L, the unit supports mounting in any position using through-holes and contains RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026315
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026315.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 27.5 mm
- Mounting position
- Any
- Max. no. of valve positions
- 2
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 258 g
- Type of mounting
- With through-hole
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection 1
- G1/2
- Pneumatic connection 3
- G1/2
- Pneumatic connection 5
- G1/2
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026315. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
