Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

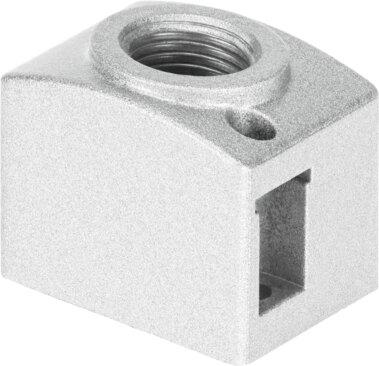

Reference imageConfirm configuration by manufacturer part number.
Festo
8026317
Supply plate VABF-B10-25-P1-G14
The Festo 8026317 is an industrial component featuring a die-cast aluminum supply plate with a G1/4 pneumatic connection 1 and a through-hole mounting type. This part operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and supports a maximum tightening torque of 3 Nm with a product weight of 26 g. Certified with a corrosion resistance class (CRC) of 2 for moderate corrosion stress, it complies with VDMA24364-B1/B2-L LABS (PWIS) conformity and RoHS material regulations. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026317
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026317.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque
- 3 Nm
- Product weight
- 26 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Note on materials
- RoHS compliant
- Supply plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026317. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
