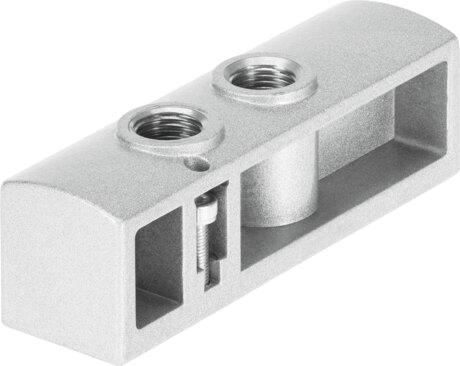

Reference imageConfirm configuration by manufacturer part number.
Festo
8026319
Supply plate VABF-B10-25-P1A4-G14-P3
The Festo 8026319 industrial component features a die-cast aluminum supply plate with a G1/4 pneumatic connection 1 and through-hole mounting. This 80 g unit operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and requires a maximum tightening torque of 3 Nm. Built for moderate corrosion stress with a CRC rating of 2, the RoHS-compliant assembly conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026319
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026319.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque
- 3 Nm
- Product weight
- 80 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Note on materials
- RoHS compliant
- Supply plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026319. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
