Festo
8026361

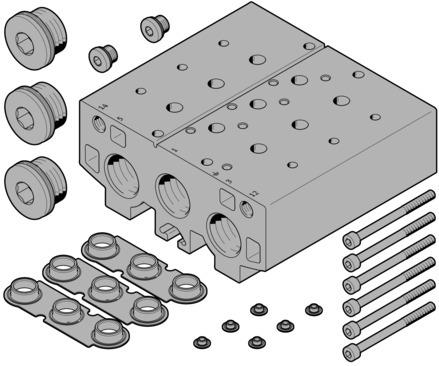

Manifold block VABM-B10-30E-G34-4
The Festo 8026361 is an industrial component featuring a width dimension of 32 mm and a product weight of 2703 g, constructed with a wrought aluminum alloy manifold rail. This RoHS compliant part accommodates a maximum of 4 valve positions, incorporates G1/8 pilot air ports 12 and 14 alongside G3/4 pneumatic connections 1, 3, and 5, and supports through-hole mounting in any position while offering a moderate corrosion resistance class (CRC) of 2 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026361
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026361.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 32 mm
- Mounting position
- Any
- Max. no. of valve positions
- 4
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 2703 g
- Type of mounting
- With through-hole
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection 1
- G3/4
- Pneumatic connection 3
- G3/4
- Pneumatic connection 5
- G3/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
