Festo
8026374

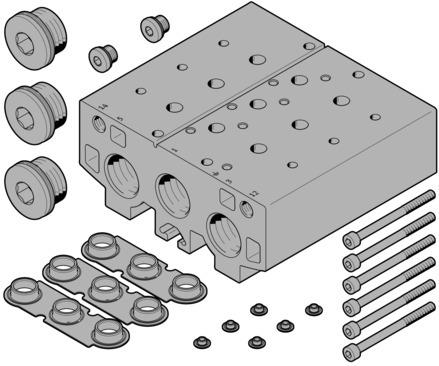

Manifold block VABM-B10-30E-N34-8
The Festo 8026374 industrial component features a wrought aluminum alloy manifold rail with a width dimension of 32 mm and a product weight of 4665 g, designed to accommodate a maximum of 8 valve positions. This unit provides through-hole mounting, any mounting position, 1/8 NPT pilot air ports 12 and 14, and 3/4 NPT pneumatic connections 1, 3, and 5. Built with RoHS-compliant materials, it exhibits a corrosion resistance class (CRC) of 2 for moderate corrosion stress and LABS conformity to VDMA24364-B1/B2-L. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026374
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026374.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 32 mm
- Mounting position
- Any
- Max. no. of valve positions
- 8
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 4665 g
- Type of mounting
- With through-hole
- Pilot air port 12
- 1/8 NPT
- Pilot air port 14
- 1/8 NPT
- Pneumatic connection 1
- 3/4 NPT
- Pneumatic connection 3
- 3/4 NPT
- Pneumatic connection 5
- 3/4 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026374. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
