Festo
8026381

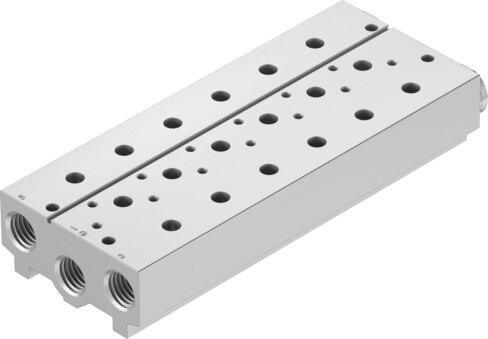

Manifold block VABM-B10-30S-G12-6
The Festo 8026381 is an industrial component featuring a wrought aluminum alloy manifold rail with a 32 mm width dimension and a product weight of 1776 g. It supports any mounting position via through-hole installation and accommodates a maximum of six valve positions, incorporating G1/2 pneumatic connections for ports 1, 3, and 5. Built to corrosion resistance class 2 for moderate corrosion stress, the assembly complies with VDMA24364-B1/B2-L LABS conformity and RoHS material directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026381
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026381.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 32 mm
- Mounting position
- Any
- Max. no. of valve positions
- 6
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1776 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/2
- Pneumatic connection 3
- G1/2
- Pneumatic connection 5
- G1/2
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026381. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
