Festo
8026388

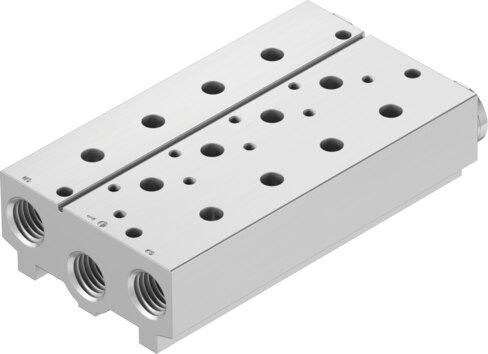

Manifold block VABM-B10-30S-N12-4
The Festo 8026388 is a wrought aluminum alloy manifold rail with a 32 mm width and a product weight of 1267 g, featuring a through-hole mounting type for installation in any mounting position. This industrial component accommodates a maximum of 4 valve positions and is equipped with 1/2 NPT pneumatic connections for ports 1, 3, and 5. Built to CRC 2 moderate corrosion stress standards with RoHS compliant materials, it also conforms to VDMA24364-B1/B2-L LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026388
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026388.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 32 mm
- Mounting position
- Any
- Max. no. of valve positions
- 4
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1267 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- 1/2 NPT
- Pneumatic connection 3
- 1/2 NPT
- Pneumatic connection 5
- 1/2 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026388. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
