Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

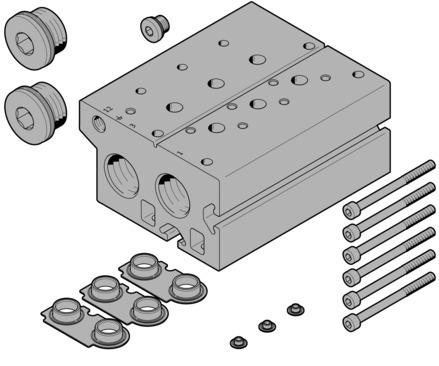

Reference imageConfirm configuration by manufacturer part number.
Festo
8026411
Manifold block VABM-B10-30E-N34-9-P3
The Festo 8026411 is an industrial component featuring a 32 mm width dimension, a wrought aluminum alloy manifold rail, and a product weight of 4330 g. Designed with through-hole mounting for any mounting position, it accommodates a maximum of 9 valve positions and provides 3/4 NPT pneumatic connections 1 and 3 alongside a 1/8 NPT pilot air port 12. This RoHS compliant assembly achieves a corrosion resistance class of CRC 2 for moderate corrosion stress and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026411
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026411.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 32 mm
- Mounting position
- Any
- Max. no. of valve positions
- 9
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 4330 g
- Type of mounting
- With through-hole
- Pilot air port 12
- 1/8 NPT
- Pneumatic connection 1
- 3/4 NPT
- Pneumatic connection 3
- 3/4 NPT
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026411. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
