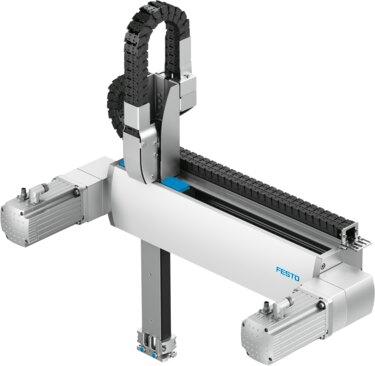

Reference imageConfirm configuration by manufacturer part number.
Festo
8026576
Linear gantry EXCT-30- -
The Festo 8026576 is a linear gantry industrial component of size 30 with a vertical mounting position, capable of operating between -0.95 bar and 8 bar. Featuring a 100% duty cycle, it delivers a maximum speed of 5 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.1 mm, supporting a rated load of 3 kg with maximum dynamic response and a max process force of 300 N in the Z direction. The unit is built with RoHS-compliant materials, adheres to VDMA24364 Zone III LABS conformity, and achieves an IP40 degree of protection within an ambient temperature range of 10 °C to 40 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026576
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026576.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 30
- Mounting position
- Vertical
- Structural design
- Linear gantry
- Operating pressure
- -0.95 bar...8 bar
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- Relative air humidity
- 0 - 90%
- Noise level
- 78 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 10 °C...40 °C
- Max. process force in Z direction
- 300 N
- Rated load with maximum dynamic response
- 3 kg
- Type of mounting
- With mounting kit | With slot nuts
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026576. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
