Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

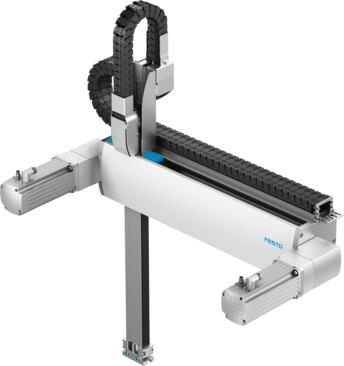

Reference imageConfirm configuration by manufacturer part number.
Festo
8026577
Linear gantry EXCT-100- -
The Festo linear gantry industrial component, part number 8026577, features a size 100 structural design with vertical mounting and an operating pressure range of -0.95 bar to 8 bar. This unit delivers a maximum acceleration of 30 m/s², a maximum speed of 4 m/s, a repetition accuracy of ±0.1 mm, a 100% duty cycle, a maximum process force in the Z direction of 500 N, and a rated load with maximum dynamic response of 10 kg. It is built with RoHS-compliant materials, achieves IP40 protection, conforms to VDMA24364 Zone III LABS standards, and operates within an ambient temperature range of 10 °C to 40 °C while generating a noise level of 77 dB(A). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8026577
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8026577.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Mounting position
- Vertical
- Structural design
- Linear gantry
- Operating pressure
- -0.95 bar...8 bar
- Max. acceleration
- 30 m/s²
- Max. speed
- 4 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- Relative air humidity
- 0 - 90%
- Noise level
- 77 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 10 °C...40 °C
- Max. process force in Z direction
- 500 N
- Rated load with maximum dynamic response
- 10 kg
- Type of mounting
- With mounting kit | With slot nuts
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8026577. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
