Festo
8028539

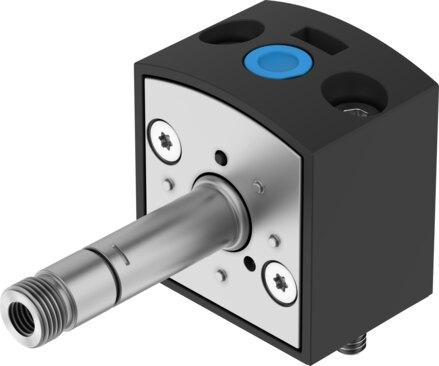

Solenoid valve VSCS-B-M32C-MH-WB-F8
The Festo 8028539 is a 30 mm wide, directly controlled 3/2-way closed monostable industrial component featuring a soft sealing principle and negative overlap lap. This sub-base valve conforms to ISO 15218 with an ISO 15218 pneumatic working port, offering a normal nominal flow rate of 34 l/min, an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar, 29 psi to 145 psi), and a maximum switching frequency of 5 Hz with 8 ms on and off switching times. It includes electrical actuation, a mechanical spring reset method, non-detenting manual override, IP65 protection, and allows mounting in any position with a required switching frequency of at least once a week for forced dynamization. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8028539
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8028539.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 30 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 34 l/min
- Pneumatic working port
- Sub-base, size 30 mm as per ISO 15218
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar | 29 psi...145 psi
- Structural design
- Sub-base valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15218
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Max. switching frequency
- 5 Hz
- Switching time off
- 8 ms
- On switching time
- 8 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3 ms
- Max. negative test pulse on 1 signal
- 3.4 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
