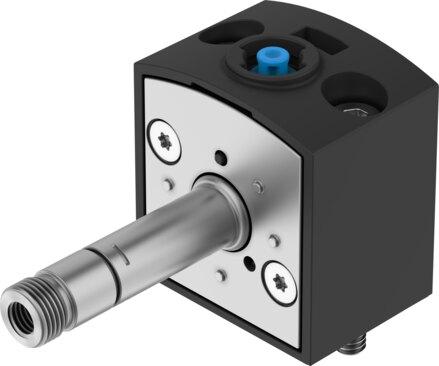

Reference imageConfirm configuration by manufacturer part number.
Festo
8028541
Solenoid valve VSCS-B-M32C-MT-WB-F8
The Festo 8028541 is a directly controlled 3/2-way closed monostable industrial component featuring a 30 mm width, a soft sealing principle, and a normal nominal flow rate of 34 l/min normalized to DIN 1343. This sub-base valve conforms to ISO 15218 with an ISO 15218 30 mm pneumatic working port, operating within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar, 29 psi to 145 psi) and utilizing a mechanical spring reset method with an IP65 degree of protection. It supports any mounting position, features both detenting via accessory and non-detenting manual override, and achieves a maximum switching frequency of 5 Hz with 8 ms on and off switching times. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8028541
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8028541.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 30 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 34 l/min
- Pneumatic working port
- Sub-base, size 30 mm as per ISO 15218
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar | 29 psi...145 psi
- Structural design
- Sub-base valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15218
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a week
- Max. switching frequency
- 5 Hz
- Switching time off
- 8 ms
- On switching time
- 8 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3 ms
- Max. negative test pulse on 1 signal
- 3.4 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8028541. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
