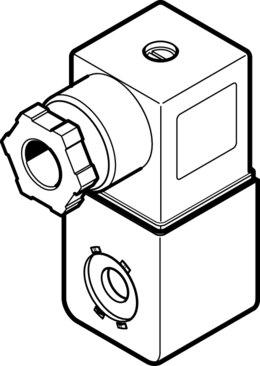

Name: Festo 8029136 Solenoid coil VACN-N-A1-1-EX2-N
Brand: Festo

Solenoid coil VACN-N-A1-1-EX2-N

The Festo 8029136 is an electrical industrial component operating on 24 V DC at 2.1 W with a 100% duty cycle, Class F insulation, and Class H enameled wire insulation, supporting any mounting position and permissible voltage fluctuations of +/- 10%. It features ATEX and UKEX Zone 2 and Zone 22 explosion protection certifications, II 3G gas and II 3D dust categories, specific Ex ignition protection ratings, and a corrosive resistance class of CRC 2 with VDMA24364-B2-L LABS conformity. Compliant with EU and UK explosion protection and RoHS directives, it carries maritime classification per DNV certificate TAA000011J for explosive ambient temperatures ranging between -20°C and +60°C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8029136
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8029136.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Duty cycle: 100%
Insulation class: F
Enameled wire insulation class: H
Coil characteristics: 24 V DC: 2.1 W
Permissible voltage uctuations: +/- 10%
Maritime classication: See certicate
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): acc. to UK EX instructions | To UK RoHS instructions
Explosion protection certication outside the EU: EPL Dc (GB) | EPL Gc (GB)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
Certicate issuing authority: DNV TAA000011J
ATEX category gas: II 3G
ATEX category for dust: II 3D
Type of ignition protection for gas: Ex ec IIC T5 Gc X | Ex nA IIC T5/T4 X Gc
Type of (ignition) protection for dust: Ex tc IIIC T95°C Dc X | Ex tc IIIC T95°C/T105°C X Dc
Explosive ambient temperature: -20°C <= Ta <= +50°C | -20°C <= Ta <= +60°C
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Degree of protection: IP65
Ambient temperature: -20 °C...60 °C
Product weight: 95 g
Electrical connection: Type A | As per DIN EN 175301-803

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8029136. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
