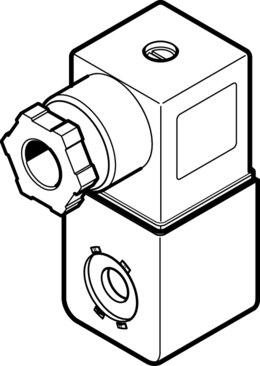

Name: Festo 8029137 Solenoid coil VACN-N-A1-16B-EX2-N
Brand: Festo

Solenoid coil VACN-N-A1-16B-EX2-N

The Festo 8029137 is an electrical industrial component featuring a 100% duty cycle, Class F insulation, and Class H enameled wire insulation with any mounting position. It operates on 110 V AC at 50 Hz with an initial power of 6.9 VA and holding power of 4.1 VA, or at 60 Hz with an initial power of 5.4 VA and holding power of 3.2 VA, accommodating permissible voltage fluctuations of +/- 10%. Certified for Zone 2 and Zone 22 hazardous locations under ATEX and UKEX directives with DNV certificate TAA000011J, it possesses a moderate corrosion resistance class (CRC 2) and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8029137
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8029137.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Duty cycle: 100%
Insulation class: F
Enameled wire insulation class: H
Coil characteristics: 110 V AC: 50 Hz, initial power 6.9 VA, holding power 4.1 VA | 110 V AC: 60 Hz, initial power 5.4 VA, holding power 3.2 VA
Permissible voltage uctuations: +/- 10%
Maritime classication: See certicate
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): acc. to UK EX instructions | To UK RoHS instructions
Explosion protection certication outside the EU: EPL Dc (GB) | EPL Gc (GB)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
Certicate issuing authority: DNV TAA000011J
ATEX category gas: II 3G
ATEX category for dust: II 3D
Type of ignition protection for gas: Ex ec IIC T5 Gc X | Ex nA IIC T5/T4 X Gc
Type of (ignition) protection for dust: Ex tc IIIC T95°C Dc X | Ex tc IIIC T95°C/T105°C X Dc
Explosive ambient temperature: -20°C <= Ta <= +50°C | -20°C <= Ta <= +60°C
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Degree of protection: IP65
Ambient temperature: -20 °C...60 °C
Product weight: 95 g
Electrical connection: Type A

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8029137. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
