Festo
8029139

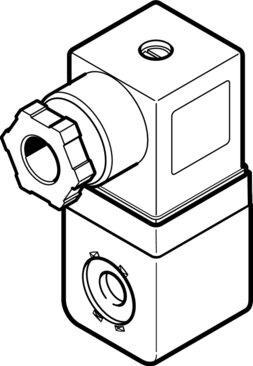

Solenoid coil VACN-N-A1-1-EX4-A
The Festo part number 8029139 is an electrical industrial component featuring a 100% duty cycle, a 27 mA required current consumption, and an any mounting position. It operates with a max input voltage Vi of 28 V, a max input current Ii of 115 mA, insulation class F, and enameled wire insulation class H, with negligibly small effective internal capacitance Ci and inductance Li. Compliance includes CE marking as per the EU explosion protection directive (ATEX), UKCA marking acc. to UK EX instructions, maritime classification per certificate, and explosion protection certification outside the EU including EPL Db and Gb across BR, CN, GB, and IEC-EX for Zone 1, Zone 2, Zone 21, and Zone 22, backed by issuing authorities CCC, DNV, and IECEx PTB. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8029139
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8029139.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Duty cycle
- 100%
- Required current consumption
- 27 mA
- Insulation class
- F
- Enameled wire insulation class
- H
- Max. input voltage Vi
- 28 V
- Max. input current Ii
- 115 mA
- Effective internal capacitance Ci
- Negligibly small
- Effective internal inductance Li
- Negligibly small
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (BR) | EPL Db (CN) | EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (BR) | EPL Gb (CN) | EPL Gb (GB) | EPL Gb (IEC-EX)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (BR) | Zone 1 (CN) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (BR) | Zone 21 (CN) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- Certicate issuing authority
- CCC 2021322307003993 | DNV 15.0188 | DNV TAA000011J | GYJ21.1326 | IECEx PTB 15.0013
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8029139. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
