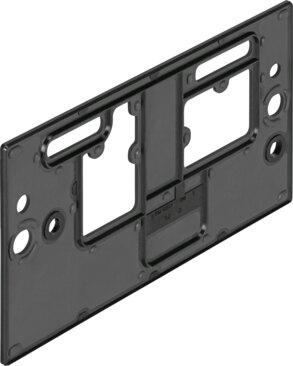

Reference imageConfirm configuration by manufacturer part number.
Festo
8029438
Duct separation VABD-S1-1-P1-C
Engineered in accordance with ISO 5599-1, this Festo industrial component part number 8029438 operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and supports vacuum applications using compressed air meeting ISO 8573-1:2010 [7:4:4] standards. The 60 g assembly features steel and NBR separator plate materials, boasts a corrosion resistance class of CRC 0, and permits operation with oil lubrication. Storage, medium, and ambient temperatures span from -20 °C to 60 °C, -10 °C to 50 °C, and -10 °C to 50 °C respectively, while maintaining RoHS compliance and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8029438
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8029438.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 5599-1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 60 g
- Note on materials
- RoHS compliant
- Separator plate material
- Steel | NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8029438. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
