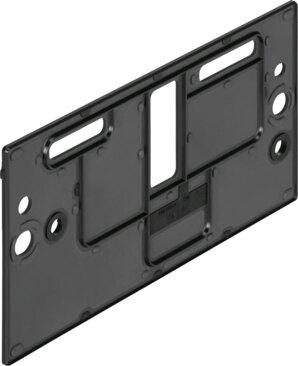

Reference imageConfirm configuration by manufacturer part number.
Festo
8029439
Duct separation VABD-S1-1-P2-C
Engineered by Festo to ISO 5599-1 standards, the 8029439 industrial component features a steel and NBR separator plate construction weighing 70 g. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and supports vacuum applications using compressed air meeting ISO 8573-1:2010 [7:4:4] specifications, allowing for oil-lubricated operation. The unit holds a corrosion resistance class of CRC 0 with VDMA24364-B1/B2-L LABS conformity, RoHS-compliant materials, a storage temperature range of -20 °C to 60 °C, and an operating ambient and medium temperature range of -10 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8029439
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8029439.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 5599-1
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 70 g
- Note on materials
- RoHS compliant
- Separator plate material
- Steel | NBR
