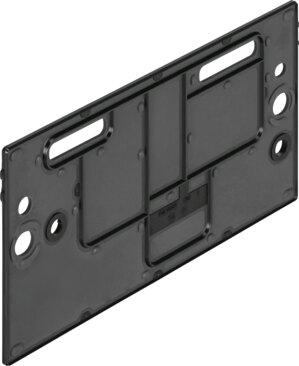

Name: Festo 8029440 Duct separation VABD-S1-1-P3-C
Brand: Festo

Duct separation VABD-S1-1-P3-C

This Festo industrial component, part number 8029440, is manufactured based on the ISO 5599-1 norm and features a separator plate constructed from steel and NBR. It operates at pressures ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), includes vacuum suitability, and functions with compressed air matching ISO 8573-1:2010 [7:4:4] standards alongside optional oil lubrication. The part weighs 75 g, adheres to RoHS material requirements, and maintains a corrosion resistance class of CRC 0 with VDMA24364-B1/B2-L LABS conformity across storage temperatures of -20 °C to 60 °C and medium and ambient temperatures of -10 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8029440
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8029440.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: ISO 5599-1
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Suitability for vacuum: Yes
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...50 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -10 °C...50 °C
Product weight: 75 g
Note on materials: RoHS compliant
Separator plate material: Steel | NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8029440. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
