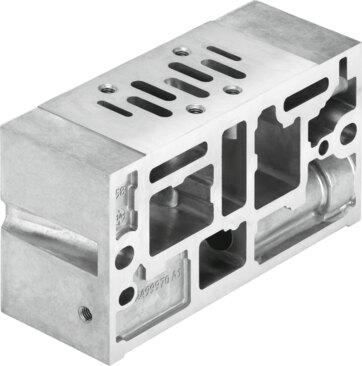

Reference imageConfirm configuration by manufacturer part number.
Festo
8029812
Manifold sub-base VABV-S1-1SB-G38
The Festo part number 8029812 is an industrial component featuring a die-cast aluminum sub-base with a width of 44 mm and a product weight of 490 g, built in accordance with the ISO 5599-1 norm for a maximum of 1 valve position. It operates within a pressure range of -0.09 MPa to 1.6 MPa (-0.9 bar to 16 bar) and supports vacuum operation, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] for both operating and pilot media with adjustable exhaust air function. This RoHS-compliant component accommodates G3/8 pneumatic connections 2 and 4, features a corrosion resistance class of CRC 0, and permits oil-lubricated operation which is required for further use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8029812
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8029812.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 44 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Max. no. of valve positions
- 1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 490 g
- Pneumatic connection 2
- G3/8
- Pneumatic connection 4
- G3/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8029812. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
