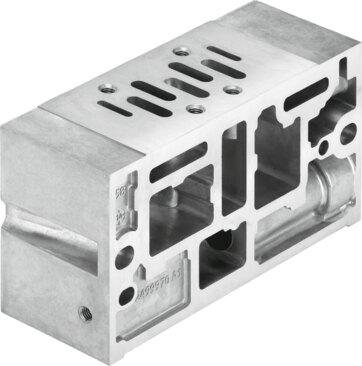

Reference imageConfirm configuration by manufacturer part number.
Festo
8029813
Manifold sub-base VABV-S1-1SB-N38
Manufactured by Festo, part number 8029813 is an industrial component featuring a width of 44 mm, a die-cast aluminum sub-base, and an ISO 5599-1 standard design with a maximum of one valve position. This unit supports an operating pressure range of -0.09 MPa to 1.6 MPa, suitability for vacuum applications, and an adjustable exhaust air function with 3/8 NPT pneumatic connections 2 and 4. The component operates with compressed air according to ISO 8573-1:2010 [7:4:4] and accommodates oil lubrication, maintaining a product weight of 490 g with RoHS compliance and CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8029813
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8029813.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 44 mm
- Exhaust air function
- Adjustable
- Based on norm
- ISO 5599-1
- Max. no. of valve positions
- 1
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Suitability for vacuum
- Yes
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 490 g
- Pneumatic connection 2
- 3/8 NPT
- Pneumatic connection 4
- 3/8 NPT
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8029813. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
