Festo
8030251

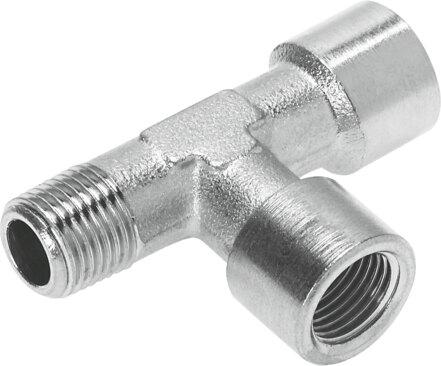

T-fitting NPFC-T-2G1-R1-FMF
The Festo part number 8030251 is an industrial component comprising a pack size of 10 nickel-plated brass threaded fittings with a product weight of 296 g. It features a G1 pneumatic connection 1, an R1 pneumatic connection 2, and operates at pressures ranging from -0.95 bar to 50 bar within ambient temperatures of -20 °C to 150 °C. The unit functions with compressed air as per ISO 8573-1:2010 [-:-:-], exhibits a corrosion resistance class (CRC) of 1 for low corrosion stress, complies with VDMA24364-B1/B2-L LABS conformity, and includes RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8030251
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8030251.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 296 g
- Pneumatic connection 1
- G1
- Pneumatic connection 2
- R1
- Note on materials
- RoHS compliant
