Festo
8030259

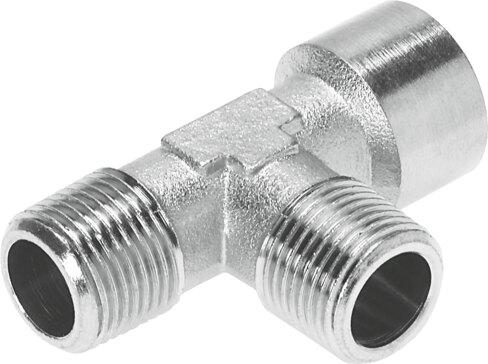

T-fitting NPFC-T-2R18-G18-MMF
This Festo industrial component, part number 8030259, is manufactured from nickel-plated brass and supplied in a pack size of 10 units with a product weight of 23.2 g. It features an R1/8 pneumatic connection 1, a G1/8 pneumatic connection 2, and operates within a pressure range of -0.95 bar to 50 bar using compressed air as per ISO 8573-1:2010 [-:-:-]. The part functions across an ambient temperature range of -20 °C to 150 °C, exhibits a corrosion resistance class (CRC) of 1 for low corrosion stress, complies with VDMA24364-B1/B2-L LABS (PWIS) conformity, and includes RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8030259
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8030259.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 23.2 g
- Pneumatic connection 1
- R1/8
- Pneumatic connection 2
- G1/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8030259. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
