Festo
8030262

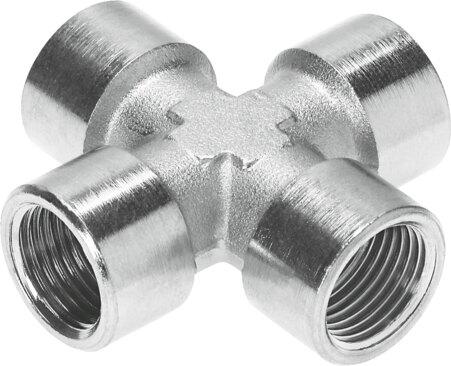

X-fitting NPFC-X-4G14-F
The Festo 8030262 is a nickel-plated brass threaded fitting packaged in a quantity of 10 units, featuring G1/4 pneumatic connections for both port 1 and port 2. This component operates at pressures ranging from -0.95 bar to 50 bar and temperatures between -20 °C and 150 °C using compressed air as an operating medium in accordance with ISO 8573-1:2010 [-:-:-]. Built with RoHS-compliant materials, the 63.7 g unit achieves a corrosion resistance class of CRC 1 for low corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit part number 8030262, quantity, and application requirements to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8030262
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8030262.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 63.7 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Note on materials
- RoHS compliant
