Reference imageConfirm configuration by manufacturer part number.
Festo
8030307

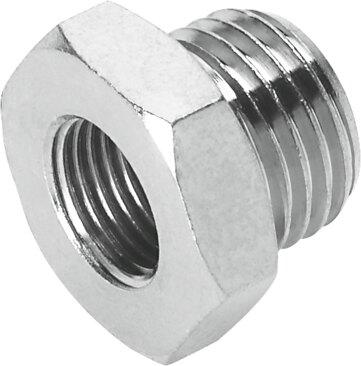

Reducing nipple NPFC-R-G18-M5-MF
This pack of 10 nickel-plated brass threaded fittings from Festo features a G1/8 pneumatic connection 1 and an M5 pneumatic connection 2, with each unit weighing 8.2 g. The components support compressed air as per ISO 8573-1:2010 [-:-:-] operating medium within an operating pressure range of -0.95 bar to 50 bar and an ambient temperature range of -20 °C to 150 °C. Featuring a corrosion resistance class (CRC) of 1 for low corrosion stress, the RoHS compliant materials also maintain VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8030307
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8030307.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 8.2 g
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- M5
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8030307. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
