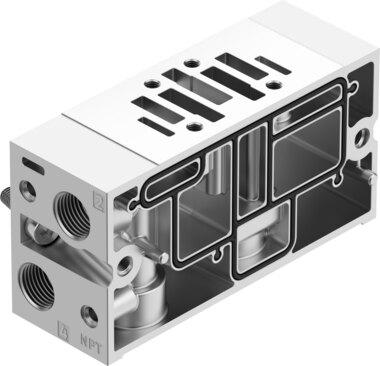

Name: Festo 8030651 Manifold sub-base VABV-S1-1HSB-N38
Brand: Festo

Manifold sub-base VABV-S1-1HSB-N38

The Festo 8030651 is an ISO 5599-1 industrial component featuring a die-cast aluminum sub-base with a 44 mm width and a product weight of 490 g. It provides an adjustable exhaust air function, a maximum of one valve position, 3/8 NPT pneumatic connections for ports 2 and 4, and an operating pressure range of -0.9 bar to 10 bar with vacuum suitability. The unit operates with compressed air per ISO 8573-1:2010 [7:4:4] across a medium and ambient temperature range of -10 °C to 50 °C, supporting oil lubrication operation and maintaining a CRC 0 corrosion resistance rating with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8030651
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8030651.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 44 mm
Exhaust air function: Adjustable
Based on norm: ISO 5599-1
Max. no. of valve positions: 1
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Suitability for vacuum: Yes
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...50 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -10 °C...50 °C
Product weight: 490 g
Pneumatic connection 2: 3/8 NPT
Pneumatic connection 4: 3/8 NPT
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8030651. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
