Name: Festo 8030801 Solenoid coil VACF-B-B2-5
Brand: Festo

Solenoid coil VACF-B-B2-5

The Festo part number 8030801 is an electrical industrial component featuring a 12 V DC, 3.4 W coil with Class H insulation and a 100% duty cycle, supporting permissible voltage fluctuations of +/- 10%. Certified under c UL us - recognized (OL) and DNVGL-TAA000011J with IP65 protection and a corrosion resistance class of CRC 2, it operates within an ambient temperature range of -20 to 60 °C and medium temperatures of -20 to 50 °C. This 55.6 g unit mounts in any position, conforms to IEC 61010-1, complies with VDMA24364-B1/B2-L LABS conformity, and connects via a 3-pin plug utilizing an 11 mm industrial standard form B connection diagram. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8030801
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8030801.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Conforms to standard: IEC 61010-1
Duty cycle: 100%
Insulation class: H
Coil characteristics: 12 V DC: 3.4 W
Permissible voltage uctuations: +/- 10%
Certication: c UL us - recognized (OL)
Maritime classication: See certicate
Certicate issuing authority: DNVGL-TAA000011J | UL MH18122
Restricted ambient and media temperature: -20 - 50 °C
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -20 °C...50 °C
Degree of protection: IP65
Ambient temperature: -20 °C...60 °C
Product weight: 55.6 g
Electrical connection 1, connection type: Plug

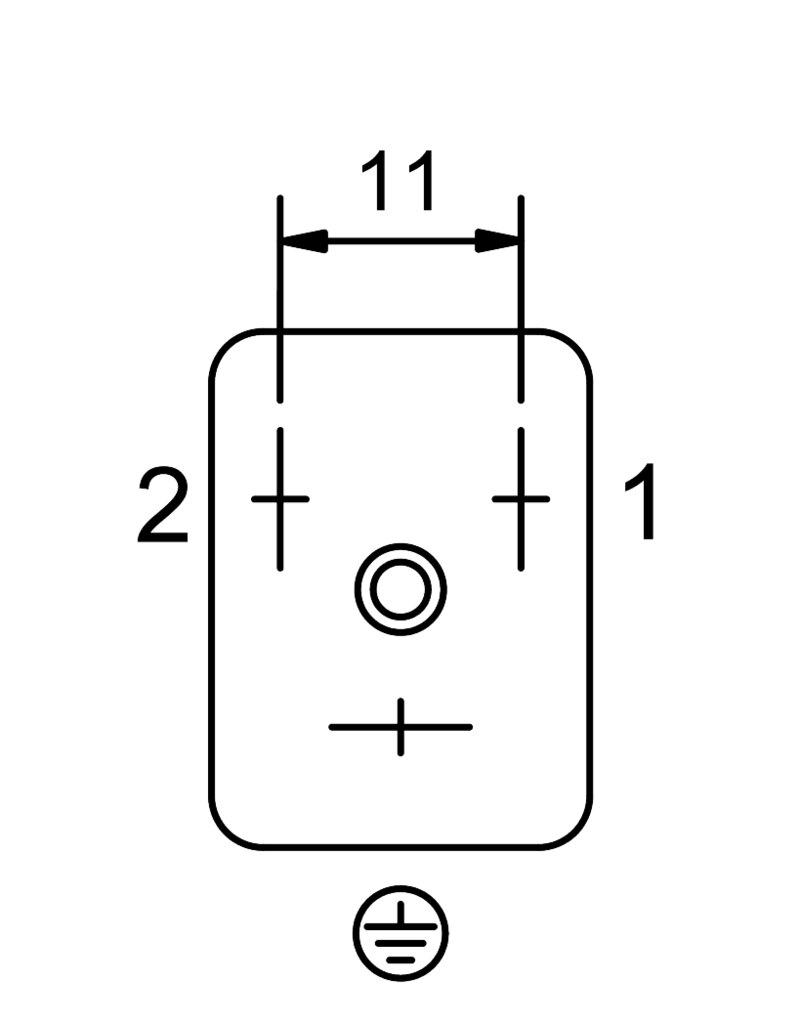

Electrical connection 1, connection technology: Connection diagram form B as per industrial standard, 11 mm
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, type of mounting: Central screw M3
Type of mounting: With knurled nut
Note on materials: RoHS compliant
Housing material: PA | Steel
Solenoid coil material: Copper | Steel | Thermoplast
