Name: Festo 8030805 Solenoid coil VACF-B-B2-7A
Brand: Festo

Solenoid coil VACF-B-B2-7A

The Festo electrical industrial component part number 8030805 features a 100% duty cycle and operates on 48 V AC at 50/60 Hz with an initial power of 3.9 VA and holding power of 2.7 VA, accommodating permissible voltage fluctuations of +/- 10%. Certified by c UL us - recognized (OL) and DNVGL-TAA000011J, this IP65-rated unit with Class H insulation supports any mounting position and functions within ambient temperatures of -20 °C to 60 °C and media temperatures of -20 °C to 50 °C. It includes a 3-pin plug electrical connection utilizing connection diagram form B per the 11 mm industrial standard, exhibits a corrosion resistance class of 2, and weighs 55.3 g. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8030805
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8030805.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Conforms to standard: IEC 61010-1
Duty cycle: 100%
Insulation class: H
Coil characteristics: 48 V AC: 50/60 Hz, initial power 3.9 VA, holding power 2.7 VA
Permissible voltage uctuations: +/- 10%
Certication: c UL us - recognized (OL)
Maritime classication: See certicate
Certicate issuing authority: DNVGL-TAA000011J | UL MH18122
Restricted ambient and media temperature: -20 - 50 °C
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -20 °C...50 °C
Degree of protection: IP65
Ambient temperature: -20 °C...60 °C
Product weight: 55.3 g
Electrical connection 1, connection type: Plug

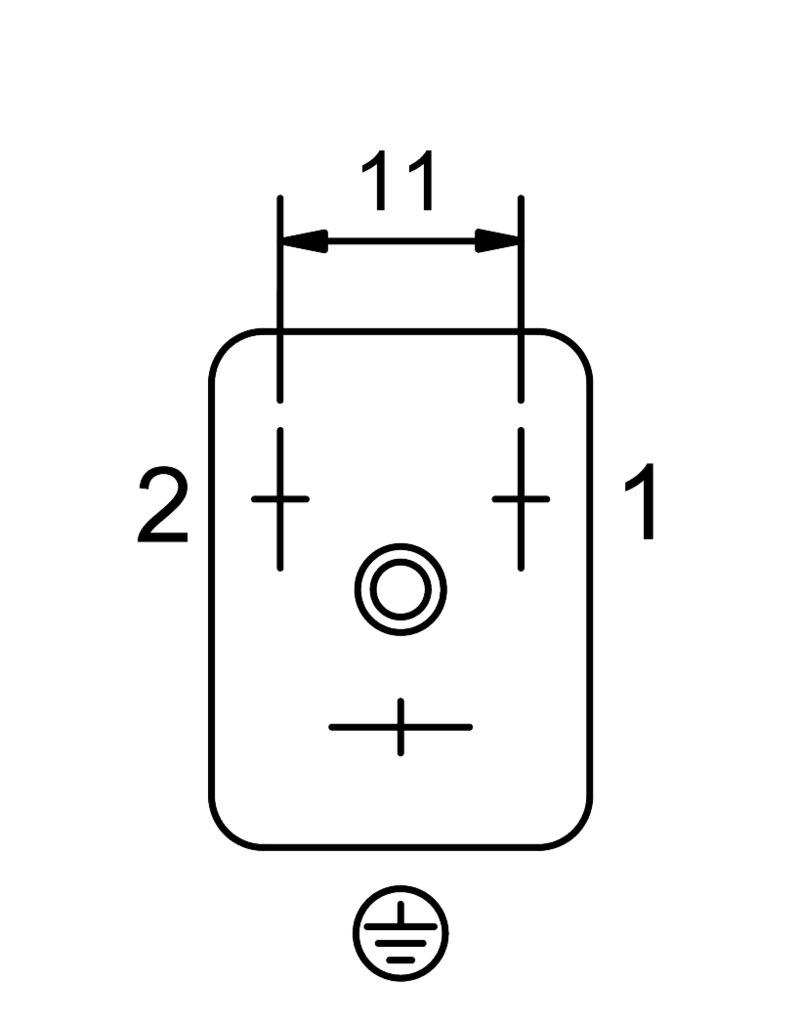

Electrical connection 1, connection technology: Connection diagram form B as per industrial standard, 11 mm
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, type of mounting: Central screw M3
Type of mounting: With knurled nut
Note on materials: RoHS compliant
Housing material: PA | Steel
Solenoid coil material: Copper | Steel | Thermoplast
