Festo
8030808
Solenoid coil VACF-B-B2-3W
The Festo part number 8030808 is an electrical industrial component featuring a 100% duty cycle and Class H insulation, operating on 230/240 V AC at 50/60 Hz with an initial power of 5.8 VA and holding power of 4.6 VA. It conforms to IEC 61010-1, offers IP65 protection, and operates within an ambient temperature range of -20 to 60 °C and medium temperature of -20 to 50 °C. The unit accommodates any mounting position, withstands 4 kV surge resistance at contamination level 2, and handles permissible voltage fluctuations of +/- 10% under moderate corrosion stress (CRC 2) with VDMA24364-B1/B2-L LABS conformity. Certified by cULus and DNVGL-TAA000011J, it carries CE and UKCA markings in accordance with relevant low voltage directives and electrical equipment instructions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8030808
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8030808.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 230/240 V AC: 50/60 Hz, initial power 5.8 VA, holding power 4.6 VA
- Surge resistance
- 4 kV
- Contamination level
- 2
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNVGL-TAA000011J | UL MH18122
- Restricted ambient and media temperature
- -20 - 50 °C
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...50 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 53 g
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology

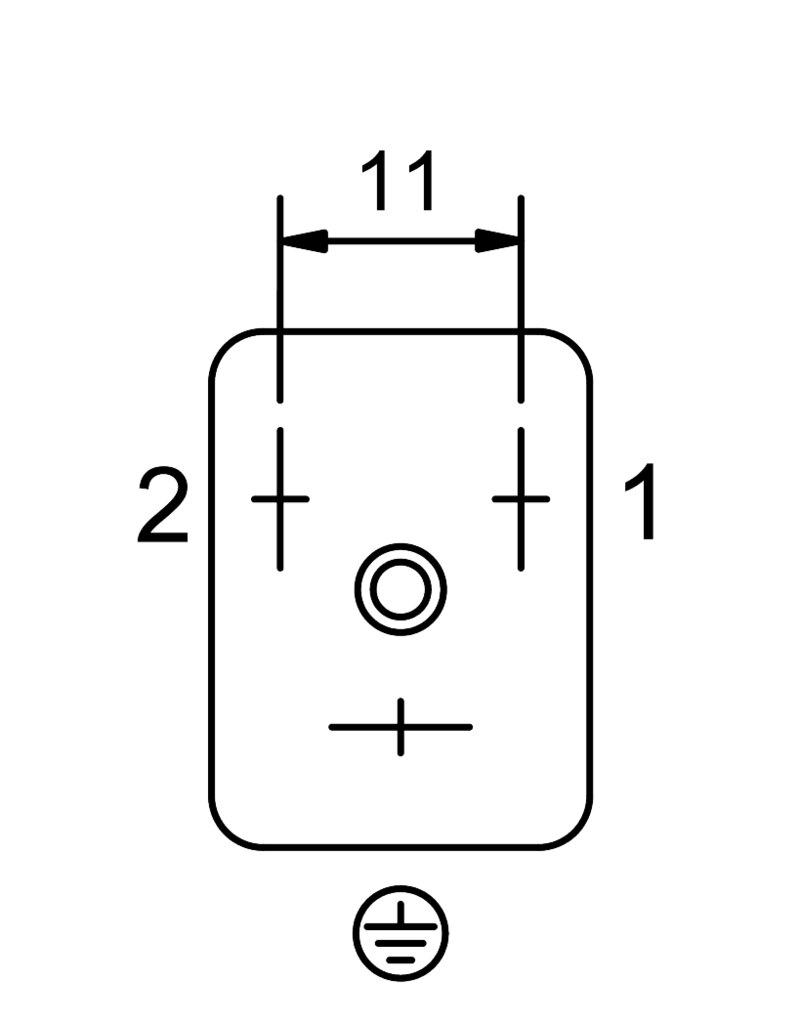

- Connection diagram form B as per industrial standard, 11 mm
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Central screw M3
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8030808. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
