Festo
8030823
Solenoid coil VACF-A-A1-7
The Festo 8030823 is an electrical industrial component weighing 82.7 g that operates on a 48 V DC, 2.8 W coil with a 100% duty cycle and permissible voltage fluctuations of +/- 10%. Certified by c UL us (OL) and DNVGL-TAA000011J, this unit features Class H insulation, IP65 protection, and Form A plug-in electrical connection conforming to EN 175301-803, supporting any mounting position within a medium and ambient temperature range of -20 to 50 °C. It demonstrates moderate corrosion resistance (CRC 2) and conforms to IEC 61010-1 and VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8030823
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8030823.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 48 V DC: 2.8 W
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J | UL MH18122
- Restricted ambient and media temperature
- -20 - 50 °C
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...50 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 82.7 g
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology

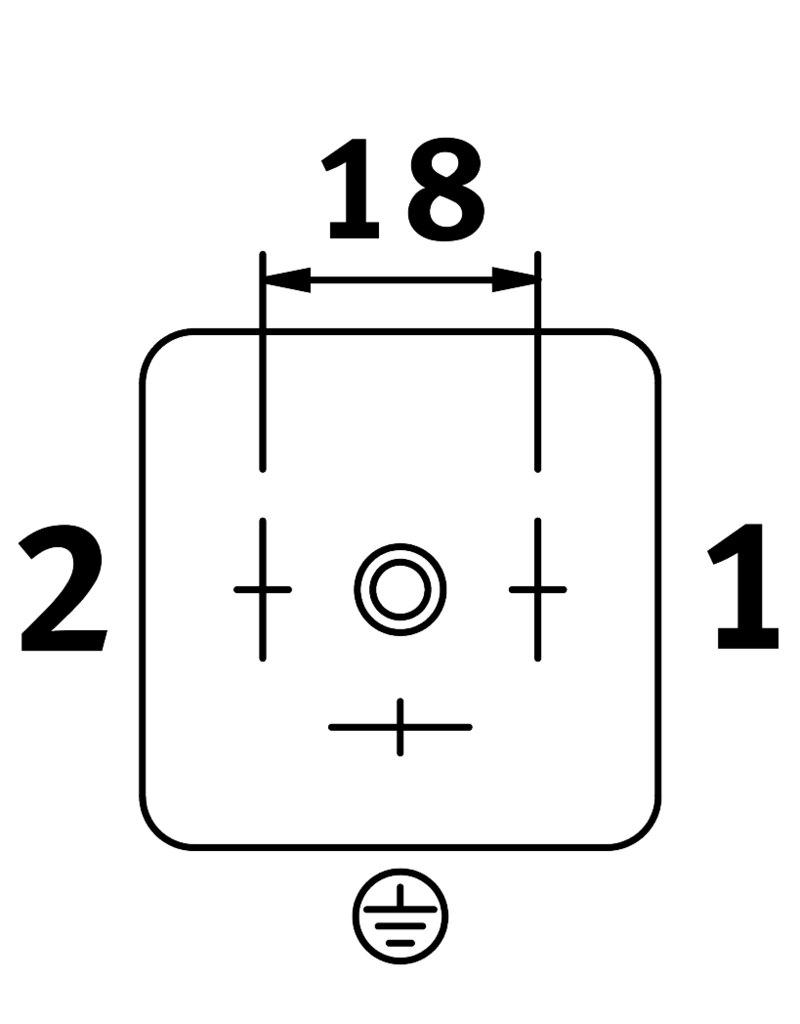

- Connection diagram form A based on EN 175301-803
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Central screw M3
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Housing material
- PA | Steel
- Solenoid coil material
- Copper | Steel | Thermoplast
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8030823. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
