Festo
8030824
Solenoid coil VACF-A-A1-1A
The Festo electrical industrial component (Part Number 8030824) operates on a 24 V AC (50/60 Hz) coil with an initial power of 2.5 VA, a holding power of 1.7 VA, and permissible voltage fluctuations of +/- 10%. Weighing 83.4 g with an IP65 degree of protection, it features a 3-pin plug connection of type Form A based on EN 175301-803, Class H insulation, and a 100% duty cycle for any mounting position. Certified by c UL us (OL) and DNVGL-TAA000011J, the unit conforms to IEC 61010-1 with a corrosion resistance class of 2, a medium and restricted ambient temperature range of -20 to 50 °C, and an ambient temperature limit of 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8030824
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8030824.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 24 V AC: 50/60 Hz, initial power 2.5 VA, holding power 1.7 VA
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNVGL-TAA000011J | UL MH18122
- Restricted ambient and media temperature
- -20 - 50 °C
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...50 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 83.4 g
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology

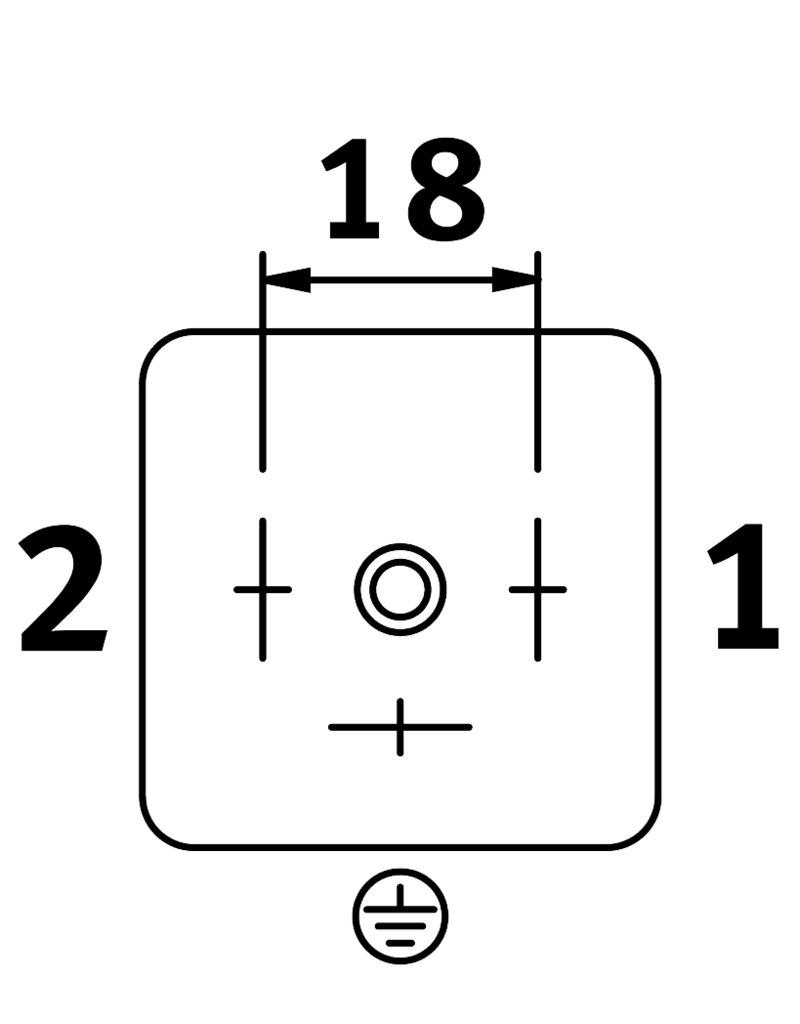

- Connection diagram form A based on EN 175301-803
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Central screw M3
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Housing material
- PA | Steel
- Solenoid coil material
- Copper | Steel | Thermoplast
