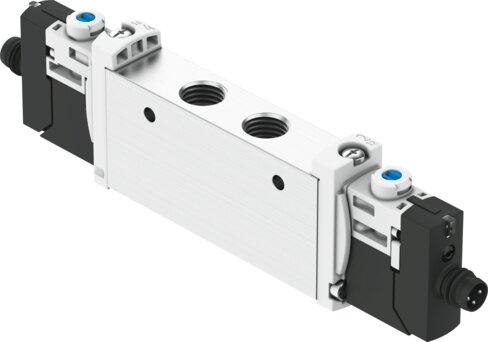

Reference imageConfirm configuration by manufacturer part number.
Festo
8031504
Air solenoid valve VUVG-L14-T32C-MT-G18-1R8L
The Festo 8031504 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function with a 14 mm valve size and a 4.3 mm nominal width. Operating at 24V DC within a 0.3 MPa to 0.8 MPa (3 bar to 8 bar) pressure range, this piloted piston gate valve delivers a normalized nominal flow rate of 520 l/min to 550 l/min through G1/8 pneumatic working ports. It incorporates a mechanical spring reset, adjustable exhaust air function, soft sealing principle, internal pilot air supply, and IP65 protection with a plug socket, alongside detenting, non-detenting, and covered manual override options for versatile mounting in any position. Compliance includes RCM, cULus recognition, CE marking per EU EMC, low voltage, and RoHS directives, plus UKCA marking for UK instructions on EMC, electrical equipment, and RoHS. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8031504
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8031504.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 520 l/min...550 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP65 | With plug socket
- Nominal width
- 4.3 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.35 MPa...0.8 MPa
- Pilot pressure
- 3.5 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 18 ms
