Festo
8032545

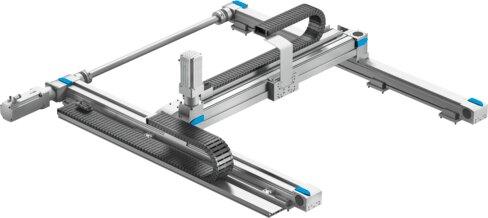

Planar surface gantry YXCF-1
The Festo part number 8032545 is a planar surface gantry system featuring electric actuator modules, an anodized aluminum and coated steel adapter plate, a high-alloy stainless steel mounting bracket, and a PA-reinforced energy chain with RoHS-compliant materials. It requires a horizontal mounting position with a mounting surface flatness and parallelism of 0.1 mm/m, and operates at a 100% duty cycle within an ambient temperature of 5 °C to 45 °C, relative air humidity of 0 to 90%, and storage temperatures from -20 °C to 60 °C while maintaining VDMA24364 Zone III LABS conformity and a 2500 km maintenance interval. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032545
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032545.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Required atness of mounting surfaces
- 0.1 mm/m
- Required parallelism of the mounting surfaces
- 0.1 mm/m
- Mounting position
- Horizontal
- Structural design
- Planar surface gantry system | with electric actuator modules
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Ambient temperature
- 5 °C...45 °C
- Maintenance interval
- 2500 km
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum | Coated steel
- Material of mounting bracket
- high-alloy stainless steel
- Energy chain material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032545. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
