Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

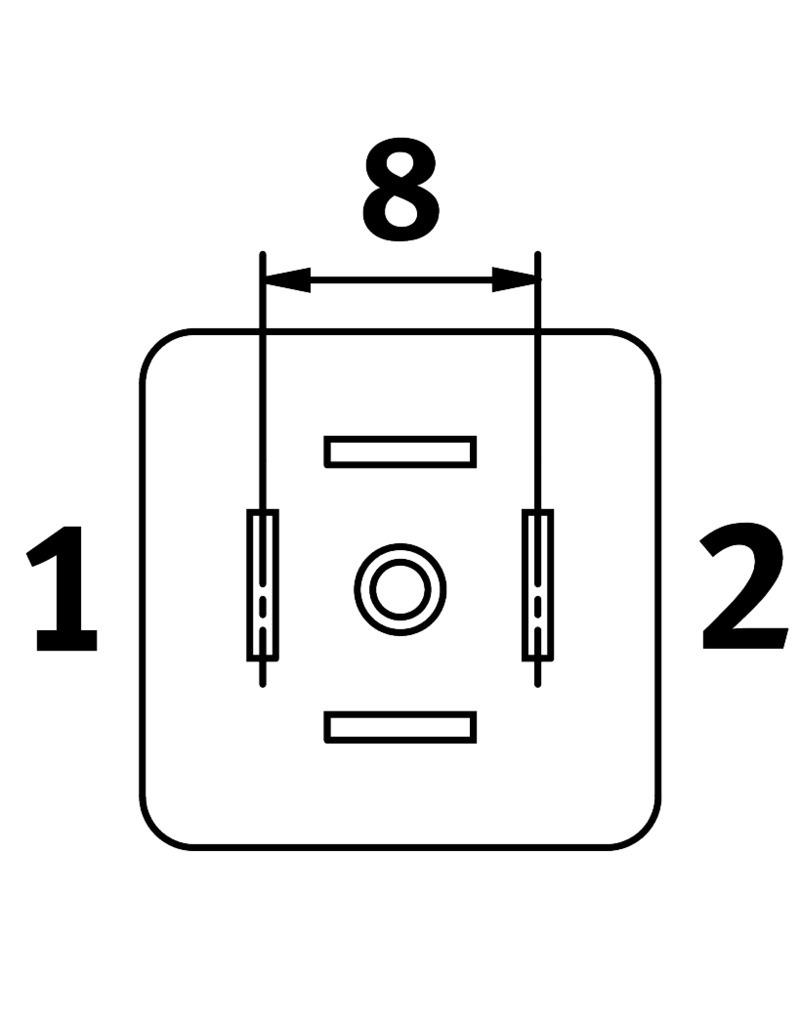

Reference imageConfirm configuration by manufacturer part number.
Festo
8032626
Connecting cable NEBV-C1SW2L-P-K-5-N-LE2-S9
The Festo 8032626 is an industrial component featuring a yellow LED signal status display and an integrated protective circuit, with a total product weight of 230 g and a DC operating voltage range of 20.4 V to 26.4 V. It utilizes a narrow, square, angled socket for electrical connection 1 adhering to connection diagram type C as per EN 175301-803, which mounts onto an air solenoid valve via an M2.5 central screw and features a cable outlet that can be rotated through 180° with 4 pins and 2 occupied pins. Electrical connection 2 consists of an open-end cable with 2 pins and 2 occupied pins, and the unit is supplied without a label holder and offers a contact durability of 50. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032626
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032626.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Signal status display
- Yellow LED
- Additional functions
- Protective circuit
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 230 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket, narrow
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- Can be rotated through 180°
- Electrical connection 1, connection technology
- Connection diagram type C as per EN 175301-803
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- On air solenoid valve with M2.5 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 20.4 V...26.4 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 6 A
- Surge resistance
- 2.4 kV
- Reverse polarity protection
- Bipolar
- Protective earth connection
- Not available
- Cable length
- 5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032626. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
