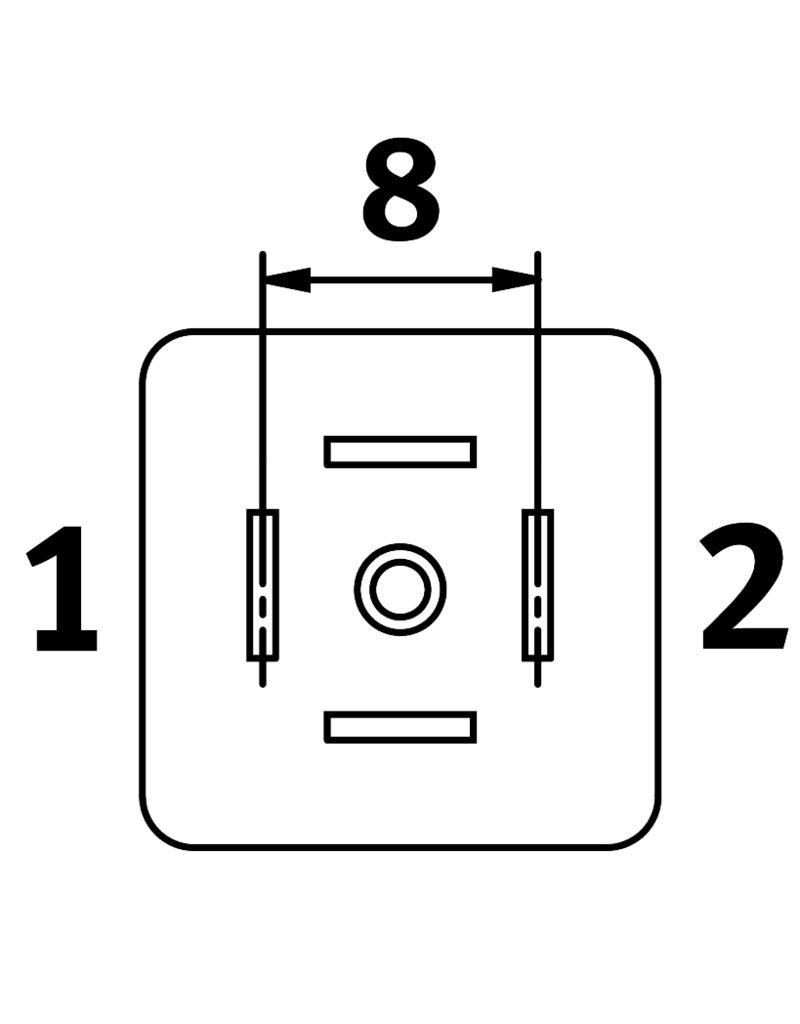

Reference imageConfirm configuration by manufacturer part number.
Festo
8032627
Connecting cable NEBV-C1SW2L-P-K-10-N-LE2-S9
The Festo part number 8032627 is an industrial component featuring a yellow LED signal status display and an integrated protective circuit, operating within a DC voltage range of 20.4 V to 26.4 V with a product weight of 440 g and a contact durability of 50. It includes a field device side connection with an angled, 180-degree rotatable narrow square socket matching EN 175301-803 type C connection diagram technology utilizing 4 pins with 2 occupied, mounted via an M2.5 central screw on an air solenoid valve, alongside a control side connection featuring an open-end cable with 2 pins and 2 occupied wires without a label holder. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8032627
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8032627.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Signal status display
- Yellow LED
- Additional functions
- Protective circuit
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 440 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket, narrow
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- Can be rotated through 180°
- Electrical connection 1, connection technology
- Connection diagram type C as per EN 175301-803
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- On air solenoid valve with M2.5 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 20.4 V...26.4 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 6 A
- Surge resistance
- 2.4 kV
- Reverse polarity protection
- Bipolar
- Protective earth connection
- Not available
- Cable length
- 10 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8032627. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
